Notch-Tite (Backing)

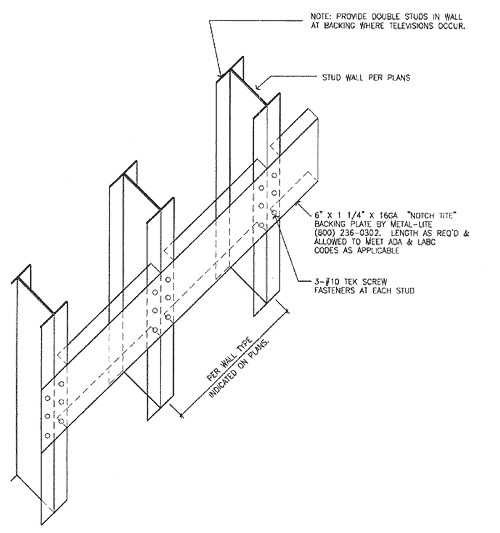

Notch-Tite Flat-Reinforced Backing:
Notch-Tite is an economical backing solution to meet backing requirements for handrails, grab bars, tubs, shower seats, wall mounted equipment, furniture, and furnishings. Notch-Tite is extremely fast and easy to install. Notch-Tite is pre notched to fit 16" or 24" on center stud construction.
Underwriters Laboratories (UL) Tested
- Pull Test to a minimum of 250 pounds pull and point load
- Field tested and approved by California Office of Statewide Planning and Development
Meets or exceeds backing requirement of all known National Building Codes including the International Building Code 2009.
Benefits of using Notch-Tite:
- Reduced labor costs
- Mount and Screw Installation
- No Field Modifications for 16" O.C. stud framing
- Each piece has 1/2 notch on each end for continuous installation
- Submittal/Test Information Provided Upon Request
- Standard Size 6" with 1 1/4" legs, 16 gauge
Copyright 2012 - Metal Lite - Metal Stud Framing accessories
LEED information available upon request. Send email to info@metal-lite.net.
