Angle System

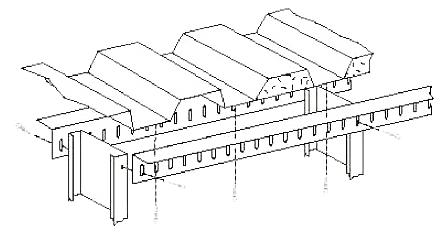

"The Angle System™" is a patented head-of-wall system that provides significant advantages over other designs. This two angle system can be used with any wall width (1-5/8 inch to 12 inches). Uses Cafco or Monokote sprayed on fire proofing. Track slots allow for upward and downward movement of the structure while maintaining a positive attachment/secure installation. Cut-ins, caulking, special cuts, safing, furring clips, taping and extra labor costs are not required.

Approvals: California State Fire Marshal.

Meets the cycle, fire resistance, and hose stream testing requirements of the BOCA Code (1999) Section 709, Standard Code Section 705, and the International Building Code 2009. Underwriters Laboratories Inc. Tested and Listed.

Quality:
Prime steel, quality assurance program and field inspections by Underwriters Laboratories.

Tested:
Underwriters Laboratories, Inc. (UL) Tested

• Underwriters Laboratories Standard ANSI/UL 2079 Standard for Fire Resistant Joint Systems

• ASTM E-1966 Standard for Fire Resistant Joint Systems

• Cycle Tested 500 times for expansion and contraction

• Cycle Tested 100 times for seismic deflection

Underwriters Laboratories, Inc. Listed

• System Number HW-D-0141 1 & 2 Hour Dynamic/Deflection Head-of-Wall System (Cafco)

• System Number HW-D-0142 1 & 2 Hour Dynamic/Deflection Head-of-Wall System (Monokote)

• Meets or Exceeds all National Model Building Codes:

• BOCA, 1999, Section 709 - Fire Resistive Joint Systems and Section 711 - Fire Partitions
• Standard Code, 1997, Section 704 - Fire Resistant and Section 705 - Fire Resistant Joint Systems.

• IBC 2009 Chapter 7 - Fire Resistant Joint Systems.

Support:
CAD disk, architectural details and calculations. Field support to architects, specifiers, framing contractors, and building officials from Metal-Lite, Inc.
ONE telephone call for everything –– no intermediaries or marketing companies!
